Hockey Clock Simulator

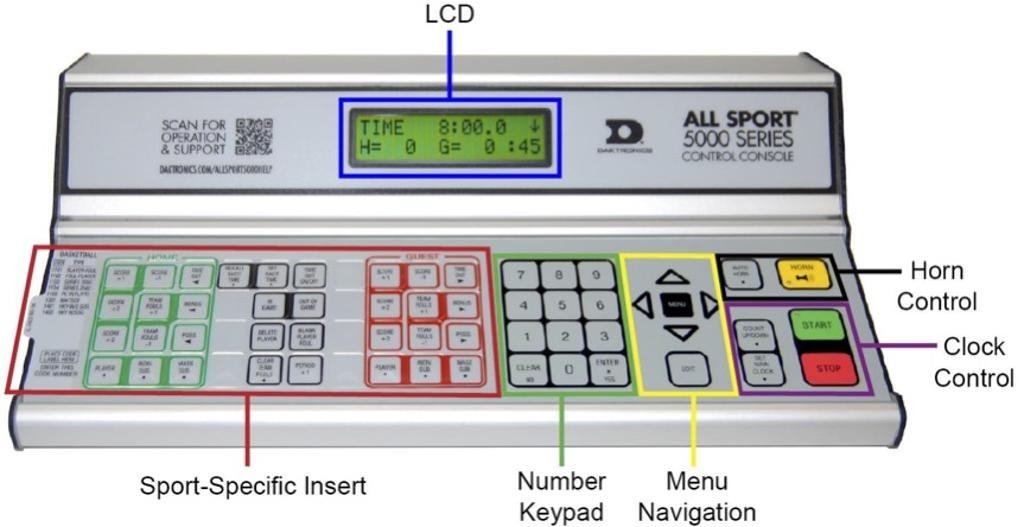

1. STARTUP & INITIAL SETUP

• Power On: Flip the power switch located on the back of the control board.
• Clear Previous Game: When prompted to continue the previous game, press the CLEAR/NO button.
• Register Code: The code is pre-registered; simply press ENTER/YES.
• Tenths of Seconds: Press ENTER/YES to move past the tenths of a second prompt.

2. SETTING GAME TIME & PERIODS

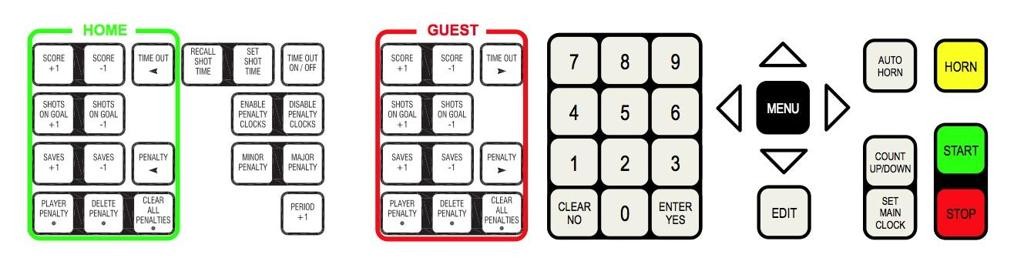

• Set Time: Press SET MAIN CLOCK.
• Enter Time: Type the time using the keypad, then press ENTER.
• Example: For 5 minutes, type 5000.
• Set Period: Press the PERIOD+ button until the correct period is displayed.
• Reset for Next Period: Press SET MAIN CLOCK and then ENTER. This automatically loads the previous period's time.
• Run/Stop Clock: Use the green START and red STOP buttons.

3. MANAGING PENALTIES

To Enter a Penalty:

1. Press the PLAYER/PENALTY button.
2. Press ENTER.
3. Type the Player Number and press ENTER.
4. Type the Penalty Time (e.g., for 1:30, type 130) and press ENTER.

To Remove a Penalty:

1. Press the PLAYER/PENALTY button.
2. Use the UP ARROW key to find the correct penalty on the control display.
3. Press CLEAR, then press ENTER.

4. TRACKING SCORES & SHOTS

• Score: Press the +1 button under HOME or GUEST SCORE.
• Shots on Goal: Press the +1 button under HOME or GUEST SHOTS ON GOAL
